Micro Cooling Fans for Electronics

Micro Fans
With the advancement of consumer electronics, medical devices, and industrial automation towards miniaturization and high integration, micro cooling fans (usually ranging from 9 to 50mm in size) have become core thermal management components for ensuring the stable operation of equipment.

 1. Technological Introduction

Material and Structural Innovations

  • Blade Design and frames: Mostly use PBT (polybutylene terephthalate) materials, taking into account flame retardancy (UL94-V0) and corrosion resistance. Some medical-grade fans add sound insulation cotton to further reduce noise.
  • Bearing Technology: Hydraulic bearings and ball bearings have become the mainstream, with a lifespan of more than 50,000 hours. Murata's piezoelectric micro fan adopts a valveless design and achieves silent operation through ultrasonic vibration (frequency exceeds the range of human ears).

2. Type Classification

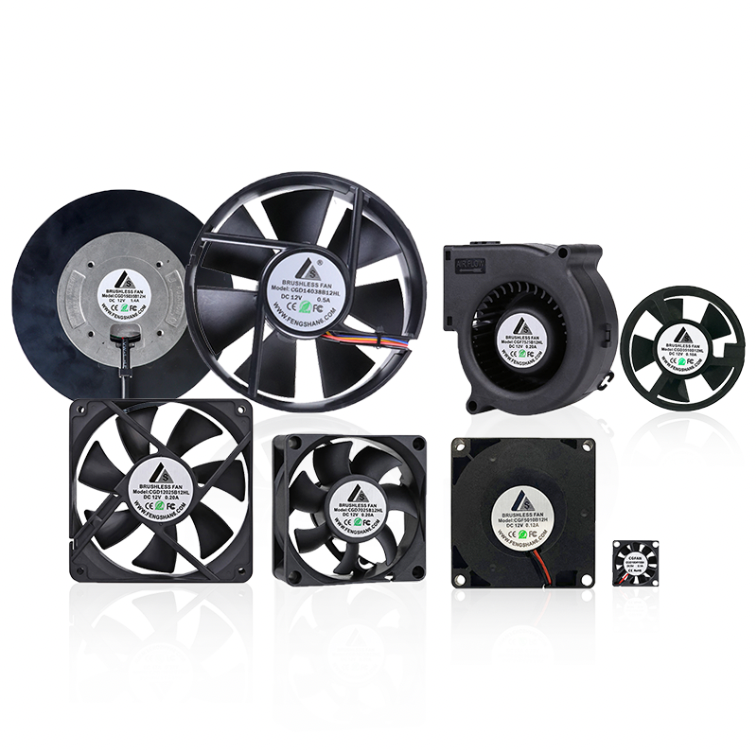

Based on airflow direction and structural design, small cooling fans (typically <50mm) are categorized into four major types

Type Characteristics Applications
Axial Fan Airflow parallel to axis; compact size (e.g., cgfan CGD1804: 18×18×4mm) Smartphones, drones
Centrifugal Fan High-pressure airflow perpendicular to axis; supports 6,200 RPM (e.g., BRA3008)
Laser equipment, server GPU cooling
Mixed-Flow Fan Hybrid axial/centrifugal design; 30% lower noise than axial fans; -30°C–80°C range MRI machines, industrial automation
Cross-Flow Fan Wide, uniform airflow; <25dB noise; ideal for narrow spaces (e.g., printers) Automotive dashboards, elevator systems

3. Small cooling fan application industry

1 Consumer Electronics

  • Smartphones/VR Devices: cgfan cgd1804 (18×18×4mm) reduces PCB temperatures by 3–5°C, preventing CPU throttling
  • Portable Devices: Foldable USB fans (e.g., Jisu Bear Fan) offer 24-hour battery life for outdoor use.

2 Industrial and Medical

  • Data Centers: 40mm axial fans achieve 73 CFM airflow, ensuring AI computing stability
  • Medical Devices: Murata's piezoelectric fans are used in surgical tools for contamination-free cooling.

3 New Energy Vehicles

  • IP68-rated centrifugal fans cool battery packs in high-temperature/humidity environments

4. Maintenance Strategies: Extending Lifespan and Troubleshooting

1 Routine Maintenance

  • Cleaning: Clean blades and heat sinks quarterly using soft brushes or compressed air (<0.3MPa pressure)
  • Lubrication: Oil-impregnated bearings require semi-annual lubrication; ball bearings need no maintenance

2 Common Fault Diagnosis

Symptom Possible Causes Solutions
Fan Failure Voltage mismatch / Blockage (e.g., dust) Check adapters (e.g., 12V vs. 5V)
Abnormal Noise Bearing wear / Blade imbalance Replace bearings or dynamic balancing
Thermal Control Failure PWM signal interruption / Sensor damage Inspect wiring or replace thermistors

3 Component Replacement Guidelines

  • Ensure compatibility in voltage, size (e.g., 15×15×4mm), and interfaces (2/3/4-pin)
  • Prioritize fans with FG (speed feedback) or PWM functions for intelligent thermal systems

Conclusion

Micro cooling fans exemplify how minimal innovations can drive industry-wide transformations. Through scientific selection (axial/centrifugal/mixed-flow/cross-flow) and standardized maintenance, these devices not only enhance equipment longevity but also pave the way for "overheating-free" eras in consumer electronics, medical devices, and aerospace.

CG Fan specializes in developing and providing cooling system solutions, offering enterprises intelligent, energy-saving, and high-tech products. So far, CG Fan has obtained 12 patents. Visit our website //www.rdfans.com/ for more information.
