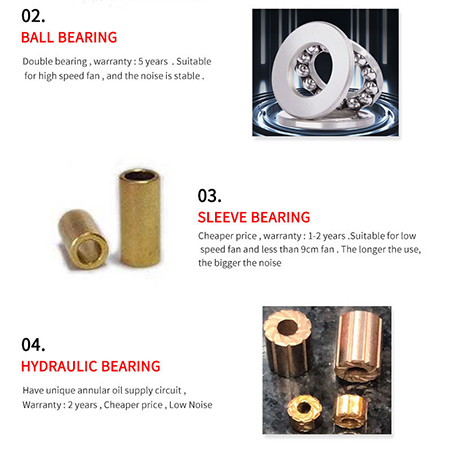

What are Ball Bearing and Sleeve Bearing Fans?

In the realm of technology cooling fans play a crucial role in maintaining optimal operating conditions for various devices and machinery. Whether it's a computer processor, an industrial motor, or an HVAC system, cooling fans are the unsung heroes that keep temperatures in check and performance at its peak.

one fundamental aspect that distinguishes these fans is the type of bearings they employ – sleeve bearings and ball bearings.

Ball bearings incorporate rolling metal balls within parallel grooved rings, or races, that facilitate fan motion with minimal friction. The free movement of the balls within the bearing allows it to move smoothly in any direction, which makes ball bearings popular for applications that require multi-axis movement. In fans, they offer the benefit of variable speed, extended fan service life, and enhanced energy efficiency.
Sleeve bearings, also known as slide bearings or bushings, are cylinders placed within a housing that enhance linear motion by absorbing friction, thereby improving efficiency and reducing vibrations and noise. They can be composed of a variety of materials, including metal, plastic, and fiber composites, and they are often used in fans to facilitate smooth, reliable motion. Due to their longevity and efficiency, both sleeve and ball bearings are extremely popular in DC fan manufacturing for a variety of cooling and ventilation applications.

Ball Bearing and Sleeve Bearing Fan Characteristics

Lifespan

Most ball bearing fans operate for approximately 50,000 hours or more. A conventional sleeve fan will operate for more than 10,000 hours. There are a variety of factors that determine the overall life of a fan such as ambient temperature, fan mounting position, amount of friction, and bearing lubrication used.
Under some conditions ball bearing fans and sleeve bearing fans have comparable life spans. However, when ambient temperatures or friction increase, or when mounted in a non-vertical position, the life of sleeve bearing fans decreases significantly. Sleeve bearings have broad line-contact between the shaft and bearing during the back-and-forth sliding motion which generates more friction than the point contact of ball bearings.
To reduce friction and minimize overheating, fans need lubrication. For ball bearing fan systems thicker lubricants are needed. These include lubricants with more additives that are subject to less evaporation. The lubricants within sleeve bearing fans have a greater concentration of oil, and the sleeve bearings' bushings can only hold a fixed amount of lubricant. Since there is no periodic recharging of the oil, the lubrication within a sleeve bearing system is more likely to evaporate.

Noise

Sleeve bearing fans generally run quieter than ball bearing fans at low fan speeds. Their noise level depends on the clearance of the fan's bushing and variances in component parts.

Cost

Sleeve bearings are not precision made, and are therefore less costly. Conversely, ball bearing manufacturing is a more extensive process which results in a higher cost.

Friction

Bearings are particularly valuable for use in fans as they reduce the friction between moving and rotating parts. This allows the parts to operate smoothly and reduces overall wear on the moving components. Ball bearings offer multi-axis, low-friction options, while well-lubricated sleeve bearings exhibit quiet, low-friction qualities ideal for low-speed, linear operations.

Versatility

From automobile engines to industrial conveyors and computer hard drives, nearly every application that requires motion employs bearings. For this reason, bearings are designed and manufactured in a wide variety of configurations, including round ball bearings and cylindrical sleeve bearings. Ball bearings are ideal for applications in which fan speed and low friction are critical, while sleeve bearings offer the advantage of quieter operation for linear applications.

Applications that Utilize Ball Bearing and Sleeve Bearing Fans

Ball and sleeve bearings each have unique design characteristics that make them useful for particular applications. Some of the most common ball bearing designs include:

Angular contact bearings. Angular contact bearings are engineered to support both radial and axial loads. This type of bearing is ideal for heavy duty, high speed fans in pumps, electrical motors, and vehicle clutches.

Axial bearings. Axial bearings, also known as thrust bearings, are used to support axial loads, and are often used to facilitate low-friction movement of high-speed impellers for optimal air flow.

Deep-groove bearings. Deep-groove bearings are designed to facilitate radial and low axial loads, which makes them ideal for use in fans with high speed and low noise designations, such as ceiling and ventilation fans.

Linear bearings. Linear bearings allow for linear movement in one direction and are often used for vent and exhaust fans.

Self-aligning ball bearings. Self-aligning ball bearings consist of two separate rows of self-aligning balls ideal for radial and light axial loads in easily misaligned shaft assemblies.

High-speed angular contact bearings. High-speed angular contact bearings are designed to accommodate high speed operations with exceptional accuracy. This makes them perfect for fans in high performance applications that require low operating temperatures.

Advantages of Using Ball Bearing and Sleeve Bearing Fans

Advantages of Sleeve Bearings

Quiet Operation: Sleeve bearings are prized for their silent performance, making them an excellent choice for environments where noise is a concern, such as home appliances or office settings.

Cost-Effectiveness: Sleeve bearings are economical to manufacture and maintain, offering a budget-friendly option for cooling fan applications.

Suitable for Horizontal Mounting: Sleeve bearings are well-suited for horizontal fan mounting, as they can effectively support the weight of the rotating components in this orientation.

Limitations of Sleeve Bearings

Lifespan and Durability Concerns: Sleeve bearings have a finite lifespan and are more prone to wear over time, which can lead to reduced fan performance and eventual failure if not properly maintained.

Unsuitability for High-Performance or Vertical Applications: Sleeve bearings may struggle to handle the demands of high-performance systems or vertical installations due to their limited durability and potential lubrication issues.

Advantages of Ball Bearings

Longer Lifespan and Durability: Ball bearings outshine sleeve bearings in terms of longevity and durability, making them a preferred choice for applications that require extended operational life.

Suitable for High-Performance and Vertical Installations: Ball bearings excel in high-performance environments and vertical mounting orientations, where they can efficiently handle increased loads and forces.

Reduced Friction and Improved Efficiency: The rolling action of ball bearings significantly reduces friction, resulting in improved efficiency and potentially lower energy consumption.

Limitations of Ball Bearings

Noisier Operation Compared to Sleeve Bearings: Ball bearings can produce more audible noise during operation compared to the quieter performance of sleeve bearings.

Higher Cost: The enhanced performance and durability of ball bearings come at a higher cost, which may impact budget-conscious projects.

To sum up：Sleeve bearings and ball bearings each offer distinct advantages for a variety of applications. Sleeve bearings are less expensive than most ball bearing designs and require less maintenance and installation time. They are also quieter at low speeds when compared to ball bearings.

Ball bearings generate less friction which creates less heat. The narrow design of ball bearings makes them easier to fit into complex and compact equipment, shortening the shaft and reducing the potential for deflection. They do not require as much lubrication as sleeve bearings, and they are able to carry both axial and radial loads, making them highly versatile. Ball bearings can also be stacked in tandem or back-to-back in order to increase their load carrying capacity.
